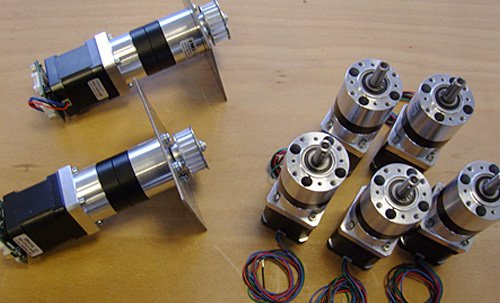

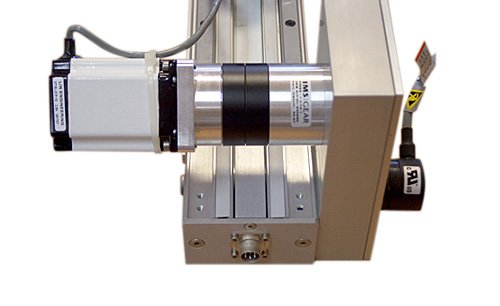

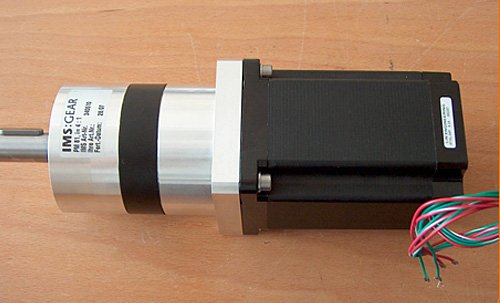

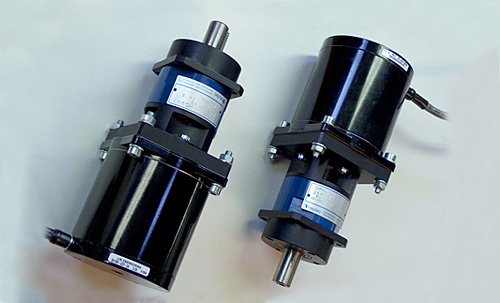

Serie planetaire reducties voor size 17 motoren.
Uitvoering als Slimline reductie.
- Hoge efficiency van 90%.
- Zeer korte inbouwmaat.
- Slimline serie.
- Onnauwkeurigheid maximaal 25 arc/min.
- Low Cost uitvoering.
- Hoge efficieny van 90%.
- Zeer korte inbouwmaat. Slimline serie.
- On-nauwkeurigheid maximaal 25 arc/min.
- Low Cost uitvoering.
- Reductie ratio 5:1.
- Uitgaand koppel 1 Nm continue.
- Voor aanbouw aan 4418x series motoren.
- Reductie vierkant maat 42 x 42 mm.
- As diameter 6 mm.
- As lengte 28 mm met platte kant.
- Totale lengte incl. motor (excl. reductie as):
- Motor 4418F + reductie = 40,0 mm.
- Motor 4418X + reductie = 43,5 mm.
- Motor 4418S + reductie = 48,0 mm.
- Motor 4418M + reductie = 53,35 mm.
